管道外壁自動噴砂機
◆符合使用范圍 Applicable scope
管類零件,如:不銹鋼管、彈簧鋼、連接桿、絲桿、玄幻圓形、圓筒狀類、圓形型工件的;通過雙槍(可按必須多槍)及漩風式抑塵器和光電技術自感應的功能,增長了產出有效率及遠遠的減輕了維修服務率。 (此蘋果機型需設定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆具體方法運作 Main technical parameters

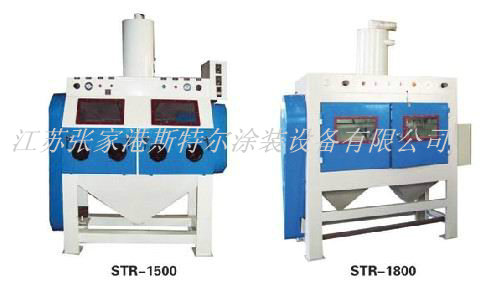

| 系統款型 Model | STR-1500管道外壁自動噴砂機 | STR-1800輥傳動雙槍自動噴砂機 |
| 業務艙尺寸 Working class size(mm) | 1000×900×900 | 1800×900×1000 |
| 主機尺寸大小 Complete machine size(mm) | 1200×900×2900 | 1900×900×2900 |
| 壓縮的廢氣源 Compressed air source | 2-8bar(kg/cm2) | 2-8bar(kg/cm2) |
| 外接電源 Power | 220v  50Hz  | 220v  50Hz |
| 交流變頻變頻電動機變頻調速器 Governor | 250W×2  | 250W×2 |
| 分開器伺服電機 Separator motor | 380v  50Hz  4kw | 220v  50Hz  1.1kw |
| 轉移器排風量 Air separator | 35m3/min | 35m3/min |
| 絲機權重 Machine weight | 900kg | 900kg |
