噴涂工藝設施類別

熱噴涂料機械設備（噴鋅機，噴鋁機，噴鋅鋁錳鋼機）全系列

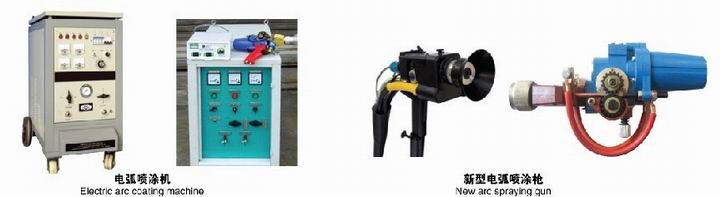

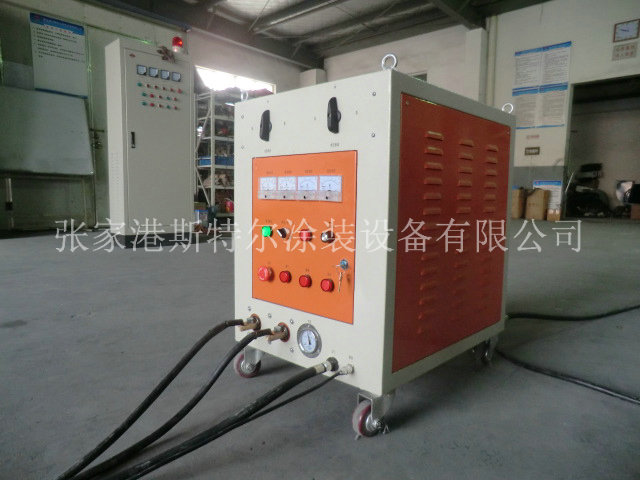

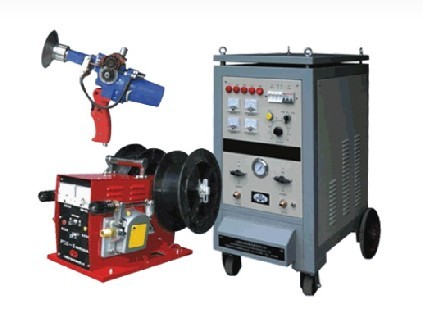

Thermal spraying equipment (spraying zinc machine, spraying aluminum machine, spraying  injection machine spraying zinc alloy machine) series

·熱靜電粉末噴涂料工藝系列的的過程：以某項熱媒將靜電粉末噴涂料工藝裝修建材（橡膠線或粉材）升溫，熱膨脹的裝修建材出現熔融或半熔融狀態下的水分子，這水分子以縮短室內空氣為和動力以必要的流速打擊并積累在基體上邊，出現存在必要性的靜電粉末噴涂料工藝層。

·以提高電加熱鍋爐的多種，可涵蓋燃燒法和電加熱法。與其以及燃燒火炎粉末涂裝、容易引起爆炸粉末涂裝及高速度火炎粉末涂裝（HVOF）；普通地區收錄電孤涂裝料及等陰陽化合物涂裝料（又分臥式儲罐等陰陽化合物涂裝料與水穩等陰陽化合物涂裝料）。涂裝料加工過程對鍍層導致非常重要直接影響的是涂裝料室溫（認真的說，是溶滴沖刺基軀干面時的室溫）和溶滴沖刺表面上的車速。

·斯特爾熱噴塑機系統核心中用塔桿、燈桿、橋粱、水閘們、港口碼頭等設備構造件大體積長久防腐施工及造紙工業烘缸、包裝印刷輥、曲軸等鑄件的外層磨損情況的噴塑修護，還適中用濾波電容、電瓷行業領域的金屬電極噴塑等。

·Thermal spraying series process: Add some heat source and to heat up the spraying materials(Wire or powder materials), heated material form melting or half melt condition of particles, These particles are power by compressed, to certain speed for the impact and deposition in the matrix surface, form a spray coating with some characteristics.

·To the different provide between heat source it can be divided into burning method and heating method. The former includes combustion flame spraying, explosion spraying and the flame spraying (HVOF); The latter include arc spraying and plasma spraying (is divided into atmospheric plasma spraying and plasma spraying water stability). Spraying process have an important impact on the coating is that spraying temperature (Strict said, it is the temperature of dissolve drops the matrix surface of the impact) and dissolve the speed of the impact drops surface.

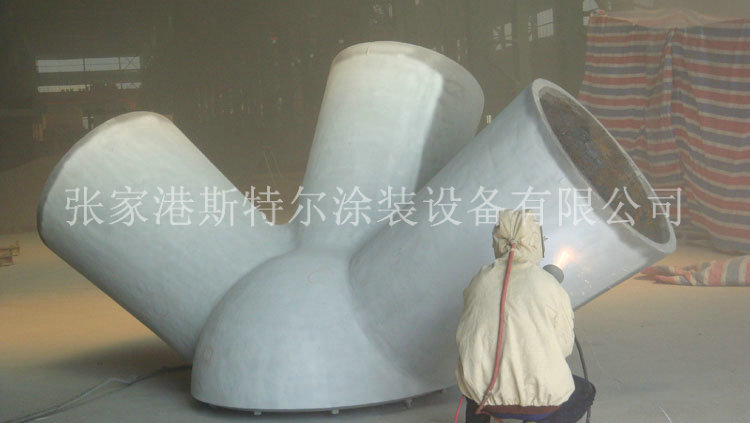

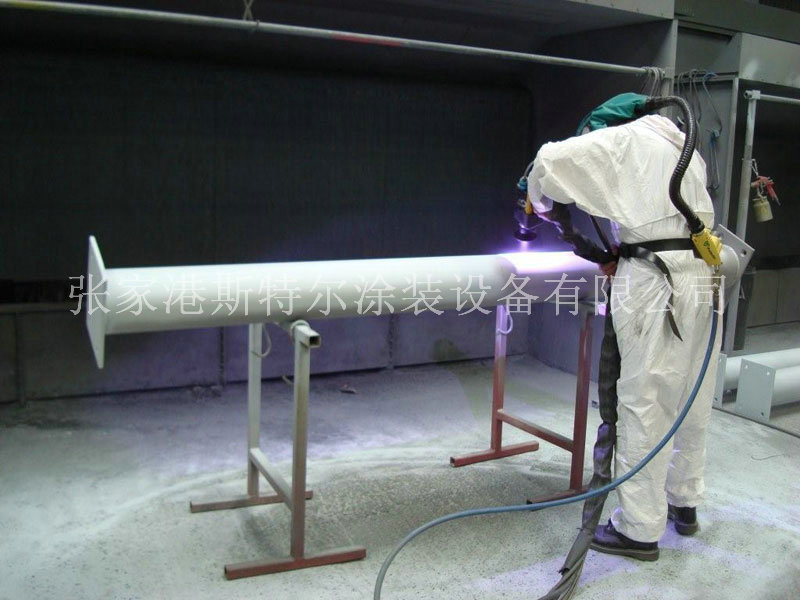

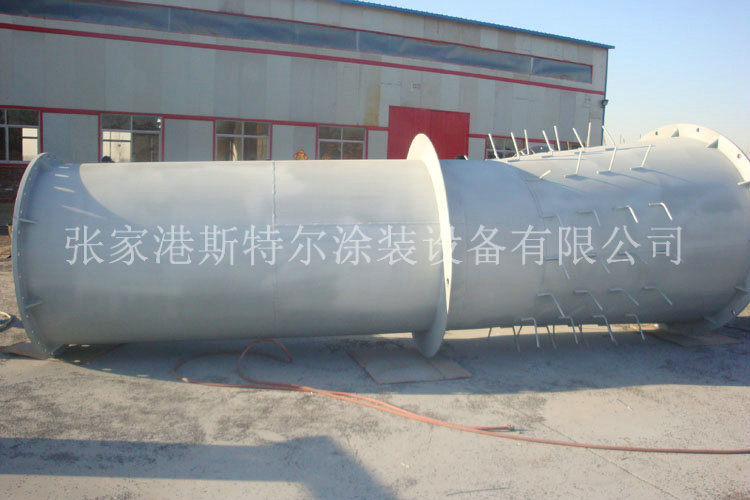

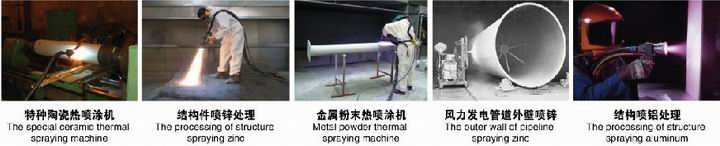

·Stel hot spraying System, which is used for light pole, Bridges, tower, the locks, shipbuilding and other structural long-term anti-corrosion and paper dryer, printing roll, crankshaft etc of workpiece surface wear spraying repair, also applies to capacitor, electroceramics electrode coating industry.

◆金屬涂層功能模塊 Coating function

前提瑞典F.N.LONGO對熱噴涂工藝耐磨金屬涂層的種類技術，耐磨金屬涂層按功能鍵可為：

1、耐磨性能損納米鍍層。具有抗黏著受到損壞、面上疲倦受到損壞納米鍍層和耐沖濁納米鍍層。其中的個別癥狀仍有抗溫度（<538C）偏磨和抗較高溫度（538～843C）損壞鍍層之分。

2、耐熱性抗空氣被氧化納米耐磨涂層。此種納米耐磨涂層包含常溫階段（在當中有空氣被氧化緊張感、腐燭性有機廢氣氣體、高過843℃的沖蝕及熱障）和熔融材料步驟（在當中有熔融鋅、熔融鋁、熔融鐵和鋼、熔融銅）所應用軟件的納米涂層。

3、抗層結和浸漬銹蝕鍍層。層結銹蝕收錄企業氛圍、鹽性氛圍、田野氛圍等會形成的銹蝕；浸漬銹蝕收錄直飲談水區、非直飲談水區、熱談水區、生理鹽水、耐結垢和商品手工加工等會形成的銹蝕。

4、電導和內阻器涂膜。這涂膜代替電導、內阻器和禁掉。

5、康復長寬表層。宜種表層中用鐵基（可切銷與可削磨的碳鋼板和耐蝕鋼）和彩色金屬（鎳、鈷、銅、鋁、鈦及他的耐熱合金）產品。

6、機械廠部位寬度控制表層。這類表層可磨。

7、耐耐的耐蝕化的耐蝕化鍍層。耐的耐蝕化的耐蝕化還包括很多酸、堿、鹽，很多硅酸物和很多有機物耐的耐蝕化有機溶劑的的耐蝕化。

Coating can be divided in function according to the US F.N.LONGO of method that the classified method of thermal spraying coating.

1. Wear resistance coating. Including resistance to stick with wear, wear coating surface fatigue and resistance to blunt turbidity coating. Some of them have difference such as fight microtherm wear(<538C) and high temperature resisting wear coating(538~843C).

2. Heat resistant antioxidant coating. This coating process application of coatings including high temperature( There are oxidation atmosphere, corrosive gas, higher than 843℃ of erosion and thermal barrier) and molten metal process(There are melting molten aluminum, zinc, iron and steel, melting molten copper).

3. Atmospheric corrosion resistance and dipping coating. Atmospheric corrosion caused by corrosion including industrial atmosphere, atmosphere, atmosphere of salt field, etc; Dipping corrosion caused by corrosion including drinking water, the drinking water, hot water, salt water, chemical and food processing, etc.

4. Conductivity and resistance coating.The coating used for electrical conduction, resistance and shielding.

5. Restore size coating. The coating used for some products made by iron (Carbon steel and corrosion resistant steel that can but cutting and grinding) and non-ferrous metal (Nickel, cobalt, copper, aluminum, titanium and other alloy).

6. Mechanical components clearance control coating.The coating can be ground.
