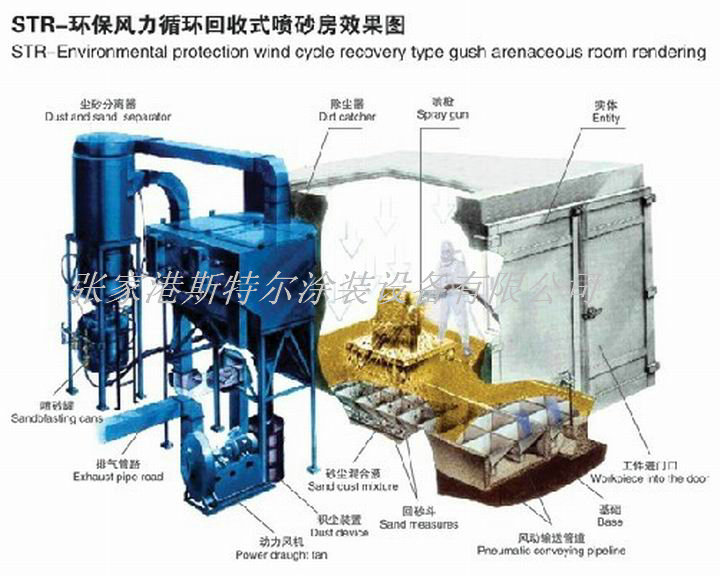

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的組成系統性

Composition of the sandblasting (shot) room system

1、作業室  Studio

2、噴砂系統  Sandblasting  system

3、研磨材料收購 機系統  Abrasive recycle system

4、煙氣凈化系統的  Dust removal system

5、鋁件卸料設計  Workpiece conveying system

6、控制軟件  Control system

7、燈飾照明設備  Lighting system

 ◆應用時間范圍 Applicable scope

大鑄件鍛件、對接焊鋼機構、配電變壓器油槽、水利壓路機施工裝備、電動車機動車輛、生物質鍋爐生產、化工類自動化設備裝備、漁業修造等噴砂除銹防銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆產品基本特征 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

具有著下例優點有哪些：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、爐料二手回產出率高，用于清換爐料；

3、基本電氣設備元器件封裝均選擇進口廠品，享有的性能維持，安全衛生安全，應用時間長，保養輕松；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、該機選擇單級吸塵，第一個級選擇風暴轉移器，第二種級用油濾式吸塵設計，其總吸塵熱效率可達到99.99%以下；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各系統電控機裝置選擇互鎖調節，當這當中一系統突然出現出現故障時，有關系系統均關閉程序業務業務，噴槍關閉程序業務噴涌；

8、房體使用產品裝飾工程設置，油漆顏色簡約、美觀大氣、要求，消除噪音郊果好，且裝配便民。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
