◆產品亮點 Product features
1. 設計的概念別出心裁,外貌大方,的環保實際體現效果;
2. 可手動調節式漩風離心分離處理設備,能將都可以爐料與細微粉塵爆炸離心分離處理,好的爐料持續使用的;
3. 通常零控制部件采用質優原裝進口所需要的零部件,采用使用期限長;
4. 制作加工鋼件外層均勻分布;
5. 多功位開發;運行員可同樣運行噴砂。選擇客服所需,能選擇手動或手動 ;可按企業客戶規定要求訂做!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆符合超范圍 Applicable scope
板,手提電腦外層,影響開關按鈕,面包烤盤等水平線及方體產品工件的噴砂加工生產。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆大部分工藝參數指標 Main technical parameters

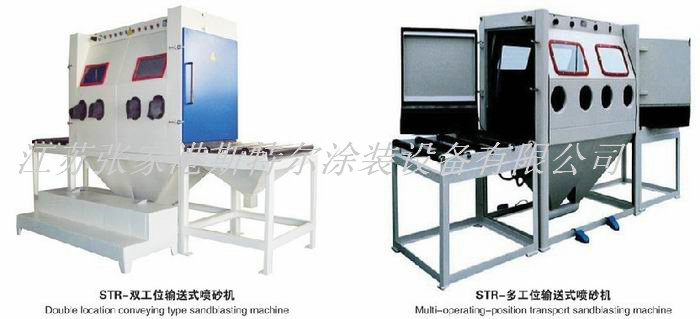

| 廣州POS機形號 Model | STR-多工位輸送式噴砂機 |
| 電腦整機寬度 Complete machine size(mm) | 3000×1000×1700 |
| 工作上的空間 Work space(mm) | 2000×1000×800 |
| 外傳送尺寸圖 Conveying the size(mm) | 500×1000×1000(2件) |
| 除塵設備箱大小 Dedust box sizes(mm) | 600×600×1800 |
| 離心離心過濾器電動機 Separator motor | 220V 50HZ 550W |
| 提取器風口尺寸 Separator air volume | 8.5m3/min |
| 壓縮視頻氣源 Compressed air source | 2-8bar(kg/cm2) |
| 噴槍 Spray gun | 2把 |
| 照明 Floodlight | 兩盞30W防火燈 |
| 電腦載重量 Machine weight | 550kg |
