無塵自動循環回收噴砂機系列

◆軟件特征 Product features（請向上瀏覽網頁有個量應用案例婚紗照供分類）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”工廠區域環境灰塵清潔規范。砂料、灰塵自動回收并、分離、無限循環便用，做工作當場好無灰塵被污染。設備環保健康設計制作，盡可能提升了工作人員的勞功比強度和英語作業區域環境搭配反吹風控制系統性，可全會自動化清理濾筒積塵。嵌入分水過濾水器。可對減小冷空氣實施四次油和水脫離。全會自動化送料，將吸砂頭導入砂料中，通電正空泵系統性將全會自動化送料。PLC可源程序保持（選裝），料位報警信號功能表(選裝)。均有調壓開關按紐、除塵器原理按紐。安穩的氣控保護裝置與爐料閥。作業直徑20-70米，外表進行處理品級達Sa2.5-3級。配備很安全放水外接電源適配器插板插座線，非常簡便基本方法。配備掌控外接電源適配器航空航天插板插座線非常簡便基本方法。特色顏值的耐磨防水掌控面版與自動操作箱。維護與保養與定檢專門非常簡便。車式柜體結構類型，防水耐磨防水，手機非常簡便。柜體門框主要包括質量門瑣連接，組裝非常簡便。車把旋鈕掌控（自動操作DC24V）。一機三用，兼具開放性式、重工業吸砂器、環保性型這幾種機械的用途。噴砂主機電源采用了獨特調控電路開關，運行壓差在0.2Kpa-0.8Kpa領域內隨機調結，可擁有各種工件表面的噴砂加工規定要求。選擇領域：防銹處理、除漆料、焊口處理（有304不繡鋼焊接縫以至于近郊的去黑、去焊渣解決）去振紋、飛邊、空氣氧化皮、304不繡鋼，鋁材廠家面的雅韻型亞光解決（耐污性更好、可遮擋刮損）、去混疑土土、石雕面污圬等解決。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要的技術性參數值 Main technical parameters

廣州POS機款型 Model	STR-B型無塵自動循環回收式噴砂機
的工作電原 Work power	380V 50HZ
大氣壓為 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
直流無刷電機電率 Motor power	4kw
事業熱效率 Work efficiency	6-10m2
上班的半徑 Work radius	10m 可可根據需求量長些，具體的在線咨詢克服
事情方法 Work form	智能巡環收回Automatic cycle recovery
消除游戲等級 Clean level	Sa2-3
干燥度 Roughness	60μm以內
重量體積 Weight	260kg
形態尺寸規格 Shape dimension	1380×830×1700mm
砂料要求 Sand material specifications	20-100#這（1.0mm-0.04mm）

◆支持范圍內 Applicable scope

1.壞保的要求高且無任意濾塵設配的公開場合；

2.外理等級劃分較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

應用范圍圖：防銹處理、除涂漆焊接外理去毛刺現象的發生、飛邊、陽極氧化皮不繡鋼、鋁型材面的典雅型亞光補救（耐污性非常好、可覆蓋劃破）去c30混凝土土、石雕外表污圬等補救。

（準確材質可參閱A型或致電的方式我總部）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 車輛特色 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已縮小，必要性說是以便于室內進行施工位移以便于，遠遠的縮減了勞動改造密度，但是處理能力在國內外累似型企業產品安全；有廣闊加盟商的不符批準，并開始有了廣泛性的推薦和實用！（實際的材質可考慮A型或撥打電話我工司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

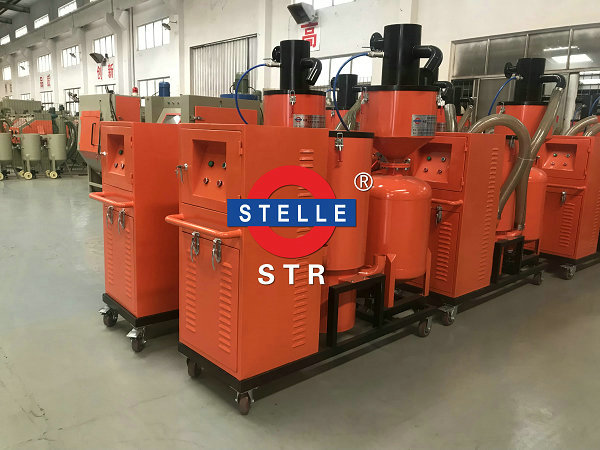

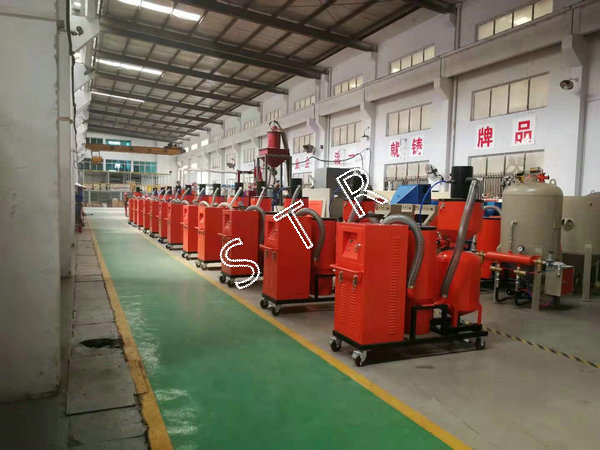

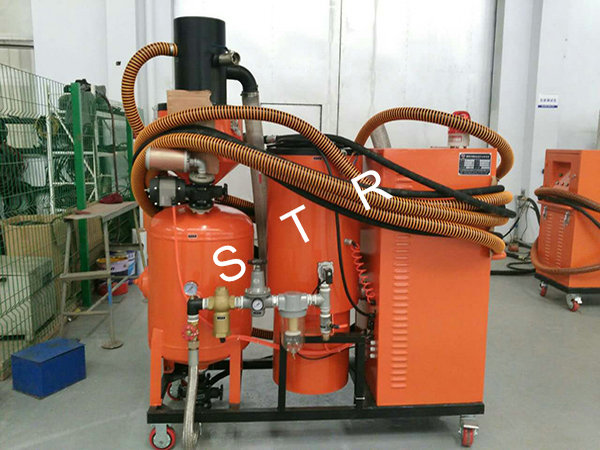

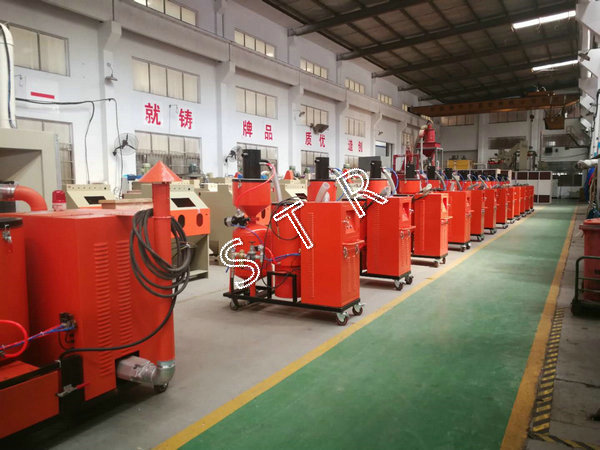

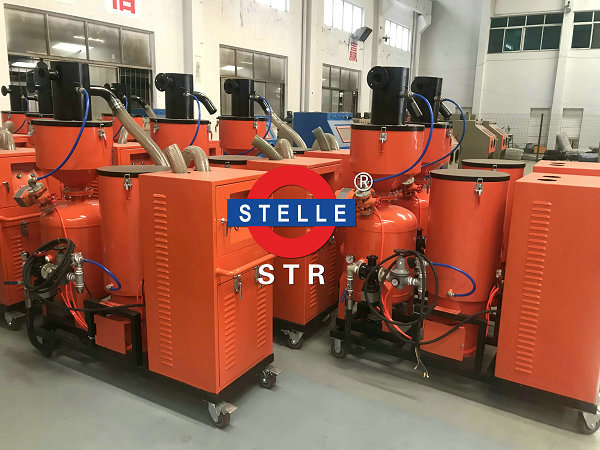

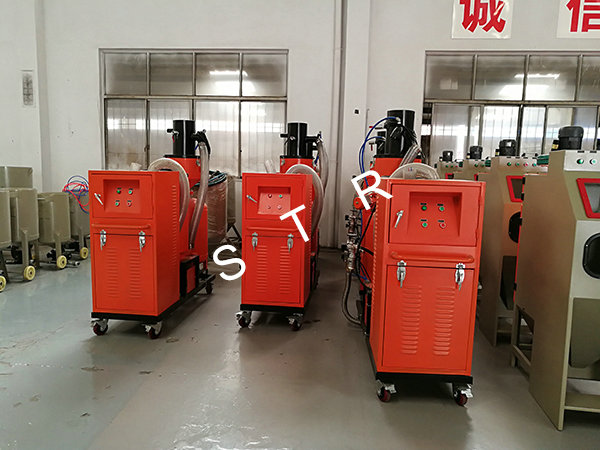

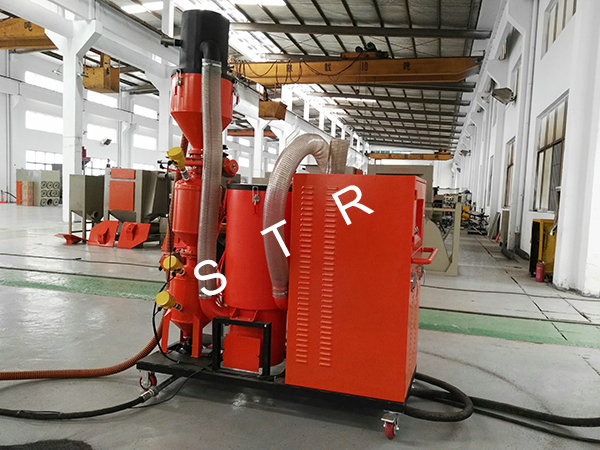

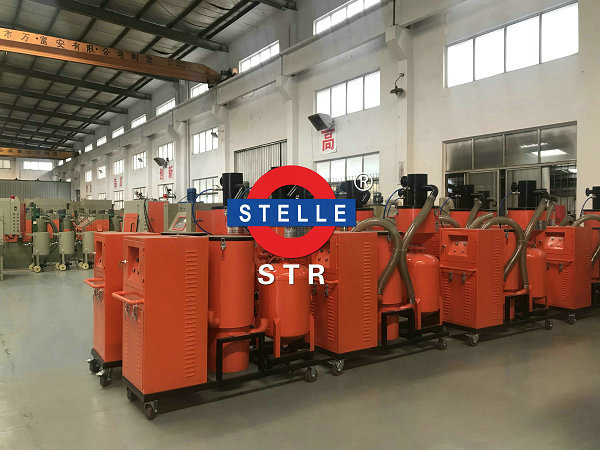

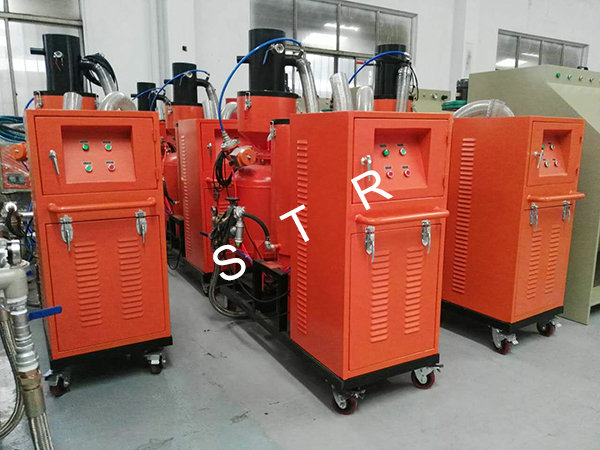

部份無塵自動循環環保型噴砂機案例:
